AneuQuick™ Plus v1.2

Cat. No: KBC-110102

Molecular diagnostic kit for common numerical chromosomal disorders (aneuploidy) and prenatal diagnosis of spinal muscular atrophy (SMA)

Cat. No KBC-110102 Categories: ,
Description

AneuQuick™ Plus v1.2 is a molecular diagnostic kit based on quantitative fluorescence polymerase chain reaction (QF-PCR), used for prenatal screening and rapid diagnosis of common chromosomal numerical abnormalities 13, 18, 21, X, and Y, as well as deletions, point mutations, or gene conversion in exon 7 of the SMN1 and SMN2 genes in spinal muscular atrophy (SMA). In fact, this kit can detect not only chromosomal abnormalities such as Down syndrome (or trisomy 21), Edwards syndrome (or trisomy 18), Patau syndrome (or trisomy 13), Klinefelter syndrome (XXY), Triple X syndrome (XXX), monosomy X (Turner syndrome), and other sex chromosome abnormalities but also diagnose 5q SMA.

The AneuQuick™ Plus v1.2 kit contains 28 markers (22 STR markers with high heterozygosity, 4 markers for gender determination and sex chromosome abnormalities, and two single nucleotide polymorphism (SNP) polymorphic markers for the SMN1 and SMN2 genes). These SNP markers are added to the KBC AneuQuick™ v3.2 kit for detecting deletions and mutations in the SMN1 and SMN2 genes. Additionally, the 7X marker is a segmental duplication marker included in the kit to differentiate X chromosome monosomy from homozygosity, thus diagnosing Turner syndrome.

It’s worth mentioning that QF-PCR is a diagnostic method, while NIPT is a screening method. Therefore, the AneuQuick™ Plus v1.2 kit serves as a suitable alternative for confirming the test after positive NIPT results.

Features

Features and Benefits

  • Analysis of 28 markers in a single reaction
  • Use of STR markers with high heterozygosity
  • Rapid diagnostic follow-up for NIPT
  • Optimized for working with various human DNA sources
  • Easy to use



This kit is compatible with DNA samples extracted from blood, amniotic fluid (AF), chorionic villus sampling (CVS), and DBC cards (DNA storage cards by Kowsar Biotechnology). It is compatible with blood lysis buffer (BLB), amniotic fluid lysis buffer (AFL), and chorionic villus lysis buffer (CVL).



For further information on the product, its usage, and result analysis, please refer to the user manual.

Markers

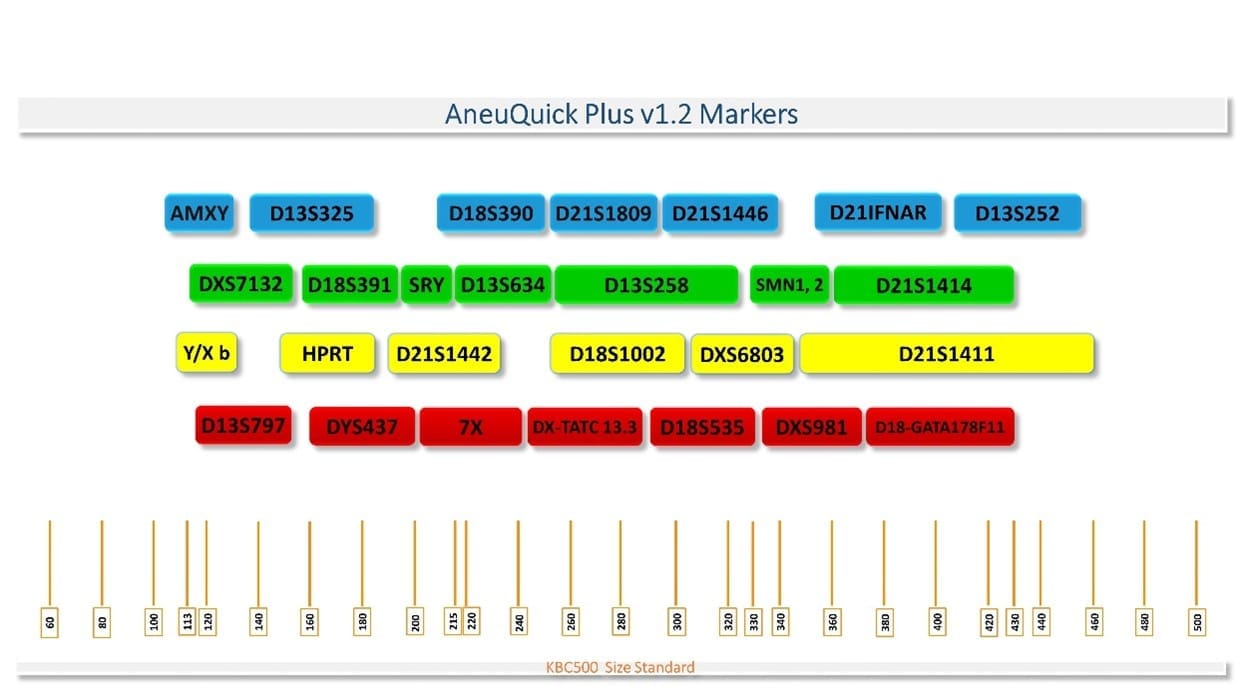

Figure 1. Map of AneuQuick Plus v1.2 kit marker



Comparison Table

Table 1. indicates the number of markers in each kit. There are 26 markers in the AneuQuick Kit v3.2, 28 in the AneuQuick™ Plus Kit v1.2, 32 in the AneuQuick™ Extra Kit v1.2, and 34 in the AneuQuick™ Extra Plus Kit v1.2. Additionally, there are 8 segmental duplications markers in both the AneuQuick™ Extra Kit v1.2 and AneuQuick™ Extra Plus Kit v1.2. The markers in these kits, amplified through multiplex fluorescent-based PCR, provide higher detection capability to medical genetic specialists. The inclusion of creative SMA detection (by adding exon 7 of the SMN1 and SMN2 genes in the AneuQuick™ Plus Kit v1.2 and AneuQuick™ Extra Plus Kit v1.2) is a notable advantage for any laboratory. It enables simultaneous detection of cases where the fetal sample appears normal in terms of aneuploidy but is affected by a severe and costly disease like SMA.





Table 1. Comparison Table

AneuQuick™

Kit 3.2

AneuQuick™ Plus

Kit v1.2

AneuQuick™ Extra

Kit v1.2

AneuQuick™ Extra Plus

Kit v1.2

Features
26283234Total markers
2222Y markers
6657X marker
2222X/Y markers
6688Chr. 21 marker
5587Chr. 18 marker
5567Chr. 13 marker
1118Segmental

Duplication

xxSMA Detection
55665or 6 dye system
Single tube

multiplex

3130/3130xl 3500/3500xL3130/3130xl 3500/3500xL3500/3500xL3500/3500xLABI GA

Systems



Compatibility

This kit is compatible with 5-color capillary electrophoresis systems such as ABI PRISM 3130/3130xl/3500/3500xL Genetic Analyzer with capillary sizes of 30, 50, or 80 centimeters.
